What does the MTBF formula actually measure?
The MTBF formula measures the average time a repairable system operates between consecutive failures. It is a probabilistic reliability indicator, not a guarantee of failure-free operation for any specific interval. The result is expressed in hours and reflects historical performance over a defined observation window.
MTBF does not tell you when a specific failure will occur. Instead, it describes the central tendency of a failure distribution. If a pump has an MTBF of 4,000 hours, that means the population of identical pumps under similar conditions fails, on average, once every 4,000 operating hours. Individual units may fail earlier or later.
The formula captures two things simultaneously: how reliable the equipment is, and how well the operating and maintenance environment supports that reliability. A low MTBF can reflect poor equipment quality, but it can equally reflect installation problems, misalignment, process overloads, or maintenance practices that introduce failure modes. This distinction matters enormously when reliability teams use MTBF to drive decisions.
MTBF is most meaningful when calculated over a statistically significant observation period with a consistent failure definition. A single failure in 500 hours produces a very different confidence level than ten failures across 50,000 hours, even if the arithmetic MTBF is identical.
How is MTBF calculated step by step?
To calculate MTBF, divide the total operating time of the asset by the total number of failures recorded in that period. The core MTBF formula is: MTBF = Total Operating Time / Number of Failures. Operating time excludes planned downtime, scheduled maintenance windows, and time when the equipment was intentionally offline.
Follow these steps to calculate MTBF accurately:
- Define the observation window. Choose a fixed time period, such as the last 12 months or the last three years of operation. Longer windows produce more statistically reliable results.
- Identify and agree on what counts as a failure. A failure is any unplanned event that causes the equipment to stop performing its required function. Partial degradation events may or may not qualify depending on your reliability framework.
- Calculate total operating time. Sum all hours the equipment was running and available during the observation window. Subtract planned shutdowns, scheduled maintenance periods, and any time the equipment was intentionally taken offline.
- Count the number of failures. Use maintenance records, work order histories, or CMMS data to count distinct failure events within the observation window.
- Apply the formula. Divide total operating time by the number of failures. For example, if a fan operated for 8,760 hours and experienced three failures, the MTBF is 8,760 / 3 = 2,920 hours.
When calculating MTBF across a fleet of identical assets, aggregate the total operating hours across all units and divide by the combined failure count. This produces a more statistically robust result than calculating MTBF for a single unit over a short period.
What data do you need to calculate MTBF accurately?
Accurate MTBF calculation requires reliable records of operating hours and a clearly documented failure history. The three essential data inputs are: total operating time per asset, a consistent and agreed-upon failure definition, and a complete log of failure events with timestamps. Without all three, the MTBF result will be misleading.
In practice, the most common data quality problems that undermine MTBF accuracy are:
- Incomplete failure logging. Minor failures that are repaired quickly are often not recorded in maintenance systems. These omissions inflate MTBF and give a falsely optimistic reliability picture.
- Inconsistent failure definitions. If one technician logs a seal leak as a failure and another logs it only when the equipment trips, the MTBF calculation becomes inconsistent across time periods or sites.
- Mixing operating time with calendar time. Equipment that runs 16 hours per day should not be assessed using 24-hour calendar days. Only actual operating hours count.
- Short observation windows. Calculating MTBF from a few months of data on equipment that fails infrequently produces unreliable results. The observation window should span multiple failure cycles where possible.
Computerized maintenance management systems (CMMS) are the standard tool for capturing this data systematically. The quality of MTBF analysis is directly proportional to the discipline of failure recording in the field. Organizations that invest in consistent work order practices and failure coding get significantly more actionable MTBF data than those relying on informal records.
What is the difference between MTBF, MTTF, and MTTR?
MTBF, MTTF, and MTTR are three distinct reliability metrics that measure different aspects of asset performance. MTBF (Mean Time Between Failures) applies to repairable equipment and measures average operating time between failures. MTTF (Mean Time To Failure) applies to non-repairable components and measures expected lifespan before permanent failure. MTTR (Mean Time To Repair) measures the average time required to restore a failed asset to operational condition.
The distinction between MTBF and MTTF is often confused but matters for how you apply each metric:
- MTBF is used for equipment that is repaired and returned to service, such as pumps, fans, compressors, and motors. After a failure, the asset is fixed and the cycle begins again.
- MTTF is used for components that are replaced rather than repaired, such as bearings, seals, or electronic components. Once they fail, they are discarded and replaced.
- MTTR measures repair speed rather than reliability. A low MTTR means your maintenance team responds and resolves failures quickly. High MTBF combined with low MTTR is the target state for asset-intensive operations.
These three metrics combine to give a complete picture of asset availability. The relationship between them is captured in the availability formula: Availability = MTBF / (MTBF + MTTR). Improving either MTBF or MTTR increases availability. Reliability programs that focus exclusively on MTBF without addressing repair time often miss significant availability gains that faster response and better spare parts logistics can deliver.
Why do low MTBF values point to specific failure causes?
A low MTBF value signals that failures are occurring more frequently than expected, and the pattern of failures often points directly to the underlying cause. Rather than treating low MTBF as an abstract reliability problem, experienced engineers use it as a diagnostic signal. The failure interval, failure mode, and operating context together narrow down root causes.
Common failure causes that consistently produce low MTBF in rotating equipment include:
- Misalignment. Shaft misalignment between a motor and driven equipment generates elevated radial and axial forces on bearings and seals. These forces accelerate wear and produce recurring bearing and seal failures, which show up as short, repeating MTBF cycles. Industry experience identifies misalignment as responsible for a substantial share of rotating machinery failures.
- Vibration and torsional shock. Mechanical couplings that transmit torsional peaks and vibration into the drivetrain accelerate fatigue in bearings, shafts, and gearboxes. The result is a failure pattern that repeats at similar intervals after each repair.
- Maintenance-induced failures. Each maintenance intervention introduces a probability of error, including incorrect reassembly, imperfect alignment after replacement, or missing fasteners. When MTBF is short and failures cluster shortly after maintenance events, maintenance-induced failure is a likely contributor.
- Process overloads and operating outside design conditions. Running equipment at partial load for extended periods, or at flow rates outside the design envelope, creates operating stresses that degrade components faster than the design MTBF assumes.
Reliability-centered maintenance (RCM) methodology uses MTBF data as an input to failure mode and effects analysis (FMEA). By mapping failure events against operating conditions, maintenance history, and component types, reliability engineers can identify which failure modes dominate and direct improvement efforts where they will have the greatest impact on MTBF.
How can MTBF be improved in rotating equipment applications?
MTBF in rotating equipment is improved by eliminating or reducing the dominant failure mechanisms: misalignment, vibration, wear, and maintenance-induced errors. Structural changes to how equipment is installed, operated, and maintained produce more durable MTBF gains than reactive maintenance improvements alone.
Proven approaches to extending MTBF in rotating equipment include:
- Eliminating misalignment at the drivetrain level. Laser alignment reduces installation offset, but dynamic misalignment caused by thermal expansion, pipe strain, and foundation movement persists during operation. Technologies that tolerate dynamic misalignment without transmitting forces into bearings and seals address this root cause structurally.
- Reducing vibration and torsional shock transmission. Couplings and drive systems that dampen or decouple torsional peaks protect downstream components from the fatigue loads that shorten bearing and seal life.
- Reducing maintenance intervention frequency. Every scheduled maintenance event is an opportunity for human error. Reducing the number of required interventions, particularly coupling element replacements and realignment procedures, directly reduces the rate of maintenance-induced failures.
- Implementing condition monitoring. Vibration monitoring, thermography, and oil analysis extend the P-F curve, giving maintenance teams time to intervene before functional failure occurs. This converts unplanned failures into planned replacements, which are executed under controlled conditions with lower error probability.
- Optimizing operating conditions. Running pumps and fans near their best efficiency point (BEP) reduces hydraulic and mechanical stresses. Extended partial-load operation outside the design envelope accelerates wear and reduces MTBF.

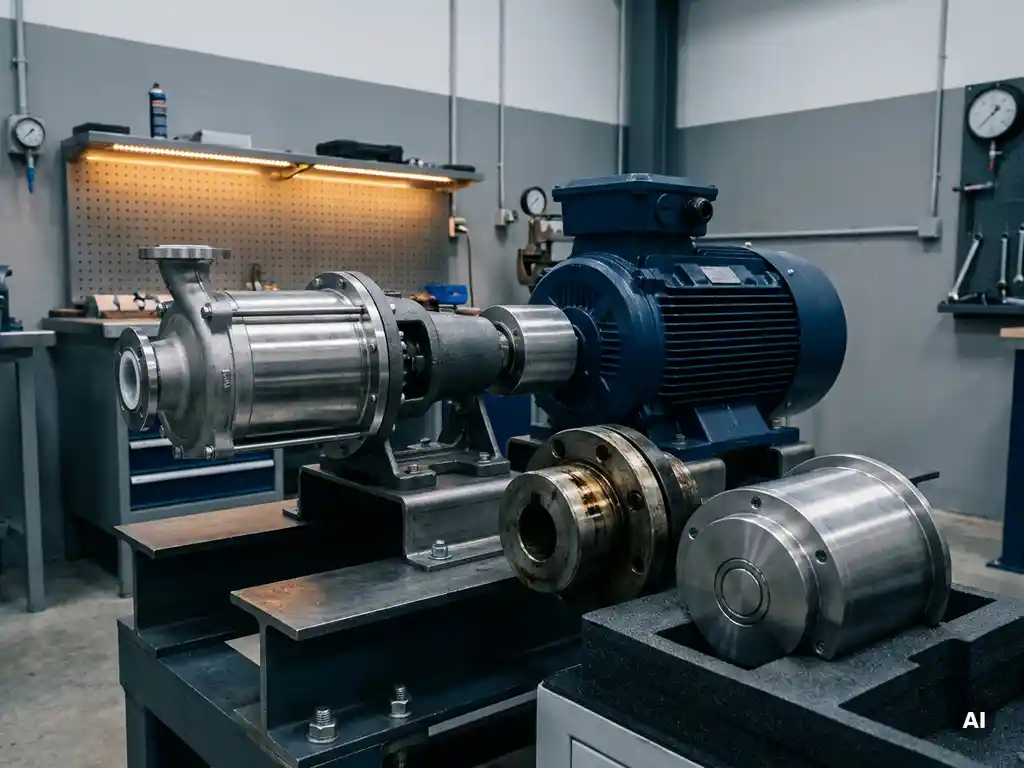

How Zytec Non-Contact Drives improve MTBF in rotating equipment
Zytec's non-contact magnetic drives address the root causes of low MTBF directly, rather than managing the symptoms through more frequent maintenance. For maintenance engineers and reliability managers working with pumps, fans, compressors, and conveyors, the technology offers a structural path to higher MTBF across the entire drivetrain. Key benefits include:
- No mechanical contact means no coupling wear. With no elastomers, no lubrication, and no friction elements, the coupling itself contributes zero wear-related failures over its service life, rated at 20 or more years.
- Dynamic misalignment is absorbed without force transmission. Thermal expansion, pipe strain, and foundation movement do not generate radial or axial loads on bearings and seals, removing one of the most significant drivers of premature bearing failure.
- Vibration and torsional shock are dampened at the coupling. Downstream components operate under stable load conditions, extending the MTBF of bearings, seals, gearboxes, and shafts throughout the drivetrain.
- Maintenance interventions are eliminated at the coupling level. No scheduled coupling inspection, no element replacement, no realignment after maintenance, and no lubrication cycles mean fewer human-error events over the asset's life.
- Energy savings up to 50% and vibration reduction up to 80% further reduce the mechanical stress that drives failure rates in rotating equipment.
If low MTBF in your rotating equipment is driving maintenance costs and unplanned downtime, contact Zytec to discuss how non-contact magnetic drive technology can deliver a measurable improvement in reliability and total cost of ownership.
Frequently Asked Questions
How do I know if my MTBF sample size is large enough to be statistically reliable?
As a general rule, you need at least 5–10 failure events within your observation window before the MTBF result carries meaningful statistical confidence. A single failure or two over a short period can produce an MTBF number that looks precise but is essentially noise. If your equipment fails infrequently, extend the observation window to cover multiple years or aggregate data across a fleet of identical assets to build a more robust sample. When in doubt, pair your MTBF figure with a confidence interval to communicate the uncertainty honestly to stakeholders.
Should planned preventive maintenance tasks be counted as failures when calculating MTBF?
No — planned preventive maintenance (PM) tasks should never be counted as failures in your MTBF calculation. A failure is strictly an unplanned event that causes the equipment to stop performing its required function. Counting scheduled PM interventions as failures would artificially deflate your MTBF and misrepresent actual equipment reliability. However, if a PM task uncovers a defect that would have caused an unplanned failure, some reliability frameworks log that as a u0022prevented failureu0022 separately for tracking purposes, without including it in the MTBF denominator.
What is a good MTBF target, and how do I benchmark my equipment against industry standards?
There is no universal u0022goodu0022 MTBF because acceptable values vary significantly by equipment type, industry, and criticality. A pump in a continuous process plant may target an MTBF of 3–5 years, while a high-speed compressor in a refinery may have a very different baseline. The most practical approach is to benchmark against your own historical data first, then compare against OEM-published reliability data, industry databases such as OREDA or IEEE 493, or peer organizations through reliability forums. The more actionable goal is a consistent upward trend in your own MTBF over time, which signals that your reliability improvements are working.
What is the most common mistake teams make when first implementing MTBF tracking?
The most common mistake is starting to calculate MTBF before establishing a consistent, agreed-upon failure definition across all technicians and sites. Without that foundation, the failure count in the denominator becomes meaningless — one technician's u0022near missu0022 is another's logged failure, and the resulting MTBF figures cannot be compared or trended reliably. Before pulling any numbers from your CMMS, invest time in defining exactly what constitutes a failure for each asset class, training your field team on that definition, and auditing work order records for consistency. Clean data discipline always delivers more value than sophisticated analysis of poor-quality inputs.
How does MTBF relate to setting preventive maintenance intervals?
MTBF provides a statistical basis for setting or adjusting PM intervals, but it should not be used mechanically as a direct scheduling trigger. A common starting point is to schedule preventive interventions at a fraction of the MTBF — often 50–70% — to catch developing failures before they become functional failures. However, this only makes sense for failure modes that follow an age-related degradation pattern. Many failure modes are random and do not benefit from time-based PM at all, which is a core insight of reliability-centered maintenance (RCM). Use MTBF alongside failure mode analysis to determine whether time-based, condition-based, or run-to-failure strategies are most appropriate for each failure mode.
Can MTBF be used to calculate the expected spare parts inventory I need to hold?
Yes — MTBF is a direct input into spare parts demand forecasting. If you know the MTBF of a component and the number of identical assets in your fleet, you can estimate the expected failure rate per year and size your inventory accordingly. For example, if a seal has an MTBF of 8,760 hours (one year) and you operate 20 identical pumps, you can statistically expect approximately 20 seal replacements per year. In practice, you should apply a safety stock factor based on lead time variability and criticality of the asset, but MTBF-driven forecasting is far more defensible than gut-feel or arbitrary minimum stock levels.
How do I get started improving MTBF if I don't have a CMMS or formal reliability program in place?
Start with a simple spreadsheet and a clear failure definition before investing in software. Log every unplanned failure event for your most critical assets with three data points: the date and time of failure, the date and time the equipment returned to service, and a brief description of the failure mode. After three to six months, you will have enough data to calculate a baseline MTBF and begin identifying which assets and failure modes deserve the most attention. Once you have demonstrated the value of structured failure tracking, the business case for a CMMS becomes much easier to make — and your clean historical data will make the implementation significantly more valuable from day one.
