How is OEE calculated and what does 85% represent?
OEE is calculated by multiplying three factors together: Availability, Performance, and Quality. The result is expressed as a percentage, where 100% would mean perfect production with zero downtime, full speed, and zero defects. An OEE score of 85% is the industry-recognized best-in-class value, meaning a plant achieves roughly 85 cents of productive output for every dollar of planned production capacity.
Each of the three components measures a distinct type of loss:
- Availability measures the proportion of planned production time during which equipment is actually running. Unplanned breakdowns and changeover delays reduce this figure.
- Performance compares actual throughput speed to the theoretical maximum speed. Slow cycles, minor stoppages, and idling pull this number down.
- Quality captures the share of output that meets specification on the first pass. Scrap, rework, and startup rejects all reduce the quality rate.
To reach an OEE score of 85%, a plant typically needs all three components to be strong simultaneously. A common reference point used in manufacturing is roughly 90% Availability, 95% Performance, and 99% Quality, which together produce approximately 85% OEE. In practice, the exact combination varies, but the key insight is that weakness in any single factor drags the overall score down disproportionately because the three values are multiplied, not averaged.
The 85% OEE benchmark was first formalized through the work of Seiichi Nakajima, who developed the Total Productive Maintenance methodology in Japan. It has since become the de facto standard against which manufacturers measure world-class operational performance.
What is considered a good OEE score across industries?
A good OEE score depends heavily on the industry and production context, but as a general guide: 85% and above is considered best in class, 65% to 85% is typical for facilities actively working to improve, and scores below 65% indicate significant room for improvement. Most manufacturing plants globally operate somewhere between 55% and 75% OEE.
Industry type plays a meaningful role in what is realistic to achieve. Discrete manufacturers assembling standardized products can more readily approach 85% because their processes are repeatable and changeover losses are predictable. Process industries such as chemical production, oil refining, and water treatment often face more complex constraints, including regulatory requirements, batch variability, and equipment that runs continuously but at reduced rates due to process chemistry rather than mechanical failure.
Some sectors set different internal benchmarks. Food and beverage manufacturers, for example, often target 60% to 70% as a realistic high-performance goal because frequent product changeovers and strict hygiene cleaning cycles reduce available production time by design. Automotive assembly plants, by contrast, frequently target 85% or higher because their high-volume, standardized operations make it achievable.
The most important principle is that OEE should be benchmarked against your own historical baseline and your industry peers, not treated as a universal fixed target. A plant that improves from 52% to 70% OEE has delivered substantial business value even though it has not yet reached the 85% threshold.
Why do most manufacturing plants fall below 85% OEE?
Most manufacturing plants fall below 85% OEE because losses accumulate across all three components simultaneously, and eliminating them requires coordinated effort across maintenance, operations, and quality functions. The most common root causes are unplanned equipment downtime, speed losses from aging or poorly maintained machinery, and quality defects that are treated as normal rather than systemic problems to eliminate.
Unplanned downtime is typically the largest single contributor to low OEE scores. When equipment fails without warning, it not only reduces availability but also disrupts performance and quality during the restart period. Plants that rely on reactive maintenance rather than planned or predictive strategies experience more frequent and longer breakdowns.
Speed losses are often underreported because they are harder to measure than a complete stop. A pump running at 80% of its rated capacity, a conveyor slightly below optimal speed, or a machine cycling slower than its nameplate specification all reduce the Performance component of OEE without triggering an alarm. Over a full shift, these minor losses accumulate into significant lost output.
Quality losses at startup are another common drag. After a breakdown or changeover, the first units produced often fall outside specification while the process stabilizes. In plants where this is accepted as routine, the Quality component of OEE erodes steadily without being addressed at the root cause.
Finally, organizational factors matter. Plants without clear OEE visibility, where production data is collected manually or inconsistently, cannot identify which losses are largest and where to focus improvement effort. The measurement infrastructure itself is often the first barrier to closing the gap toward 85%.
How does equipment reliability affect OEE scores?
Equipment reliability is the single largest driver of OEE scores because it directly controls the Availability component and indirectly affects both Performance and Quality. A machine that fails frequently or requires regular maintenance interventions loses planned production time, runs at reduced speed during recovery, and produces more defects immediately after restart. Improving reliability is therefore the highest-leverage path to improving overall OEE.
The relationship between reliability and OEE goes deeper than simple uptime. Every maintenance intervention on rotating equipment creates a risk event. Incorrect reassembly, imperfect alignment, or a missed fastener during a repair can introduce new failure modes that were not present before the technician arrived. This is why reliability-centered maintenance (RCM) frameworks emphasize reducing the frequency of interventions as much as improving their quality.
Rotating equipment such as pumps, fans, compressors, and conveyors is particularly important in this context because these assets are often central to continuous production processes. A failed pump in a water treatment plant or a tripped fan in a chemical process does not just stop one machine, it can halt an entire production line. The PF curve concept, which describes the time between detectable degradation and functional failure, is useful here: the longer the warning window before failure, the more opportunity a maintenance team has to plan an intervention without losing production.
Misalignment is one of the most cited causes of premature rotating equipment failure. When motor and driven equipment shafts are not precisely aligned, the resulting forces accelerate bearing and seal wear, increase vibration, and shorten equipment life. Eliminating misalignment as a failure mechanism, whether through precision alignment practices or through drive technologies that tolerate operational misalignment without transmitting forces into bearings, directly extends mean time between failures and raises the Availability component of OEE.
Vibration is a closely related factor. Elevated vibration levels in rotating machinery are both a symptom of existing problems and a cause of further damage. High vibration accelerates fatigue in structural components, loosens fasteners, and degrades seals and bearings faster than normal operating loads would. Plants that monitor and actively reduce vibration levels consistently report better equipment availability and longer asset life.
What are the most effective ways to improve OEE toward 85%?
The most effective ways to improve OEE toward 85% are to eliminate unplanned downtime through better maintenance strategies, reduce speed losses through equipment condition monitoring, and address quality defects at their root cause rather than inspecting them out at the end of the line. No single action achieves 85% OEE; it requires sustained improvement across all three components.
The following actions consistently deliver the largest OEE gains in manufacturing environments:
- Shift from reactive to planned and predictive maintenance. Reactive maintenance is the most expensive and disruptive mode of operation. Moving to time-based planned maintenance reduces unplanned breakdowns, and adding condition monitoring allows teams to intervene before failures occur rather than after.
- Measure and act on speed losses. Install real-time production monitoring that captures actual cycle times versus target cycle times. Identify the specific machines and shifts where speed losses are largest, and investigate root causes rather than accepting reduced speed as normal.
- Standardize changeover and startup procedures. Changeover time is a direct Availability loss. Applying SMED (Single-Minute Exchange of Die) principles to reduce changeover duration, and standardizing startup procedures to minimize quality rejects during the first minutes of production, can improve OEE significantly without any capital investment.
- Address rotating equipment reliability systematically. Pumps, fans, and compressors that fail frequently or require frequent alignment and coupling replacement are a disproportionate source of unplanned downtime. Reducing the maintenance burden on these assets through better drive technology or more robust equipment selection pays dividends across the Availability component.
- Create visible OEE dashboards at the machine level. Operators who can see their OEE score in real time make better decisions about when to escalate a problem and when a machine is running below its potential. Visibility is a precondition for improvement.
Improvement programs that combine these actions and sustain them over multiple quarters consistently see OEE gains of 10 to 20 percentage points, moving plants from the 55% to 65% range toward the 75% to 85% range within 18 to 36 months.
Should every plant target 85% OEE as the goal?
Not every plant should target 85% OEE as an immediate goal, and in some contexts, 85% is not even the right long-term target. The appropriate OEE target depends on the production context, the cost of achieving each additional percentage point of improvement, and the business value of the output being produced. For many plants, the priority should be closing the gap to their industry benchmark first, then assessing whether pushing further toward 85% is economically justified.
There are situations where targeting 85% OEE can be counterproductive. A plant with significant planned maintenance windows built into its schedule by design, such as a facility that shuts down weekly for food safety cleaning, will never reach 85% OEE as measured against calendar time. If OEE is calculated correctly against planned production time only, the target becomes more meaningful, but the point remains: the benchmark must be applied with context.
There are also situations where targeting beyond 85% is both realistic and worthwhile. High-volume, capital-intensive facilities where every hour of lost production represents substantial revenue loss have strong financial incentives to push OEE as high as possible. In these environments, the investment required to move from 82% to 87% OEE can generate returns that justify the effort many times over.
The most useful framing is to treat 85% OEE not as a mandatory destination but as a directional benchmark that tells you where world-class performance sits. The real question for any plant leadership team is not "are we at 85%?" but "do we understand our largest OEE losses, and are we systematically reducing them?" A plant improving from 60% to 72% is creating more value than one that has been static at 84% for three years.
How Zytec helps improve OEE through rotating equipment reliability

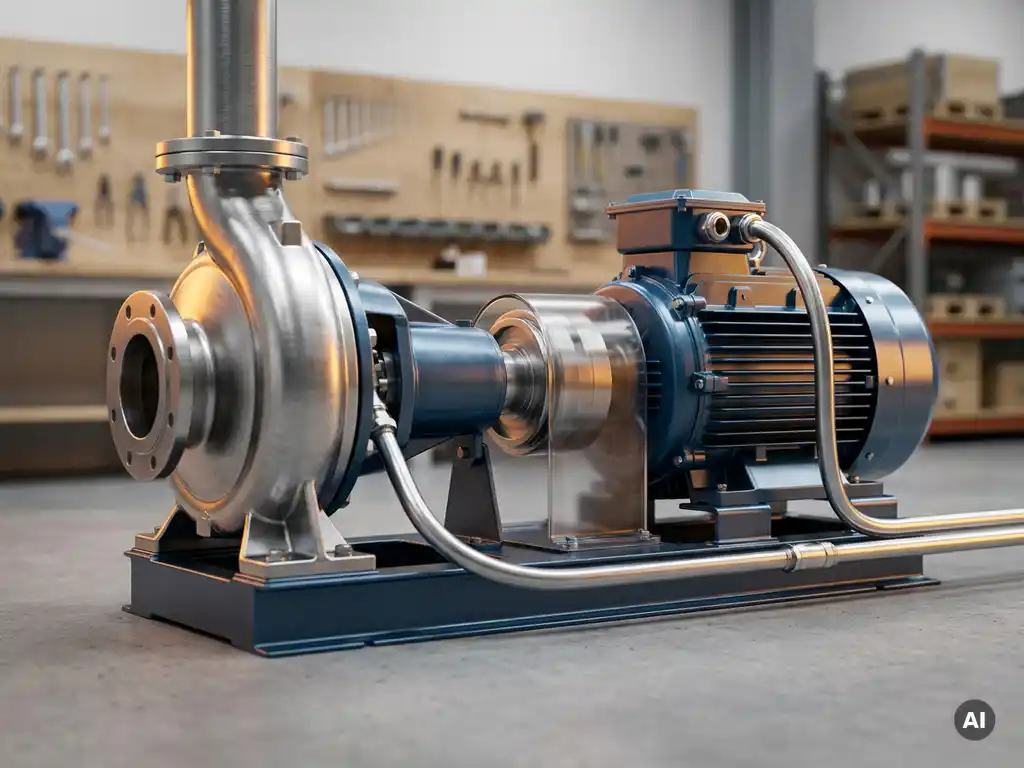

A significant share of OEE losses in asset-intensive plants originates in rotating equipment: unplanned pump failures, fan breakdowns, compressor trips, and the downtime that follows each maintenance intervention. Zytec's non-contact magnetic drives address this directly by eliminating the mechanical wear mechanisms that make rotating equipment a recurring source of availability losses.
Key ways Zytec technology supports higher OEE scores:
- No coupling wear, no scheduled replacement. Zytec's F-TORQ and A-TORQ drives contain no elastomers, no lubrication systems, and no wear components. With a rated maintenance-free operational span of 20 years or more, they remove a recurring source of planned and unplanned downtime from the maintenance calendar.
- Misalignment tolerance by design. The non-contact drive transmits torque across an air gap, meaning operational misalignment caused by thermal expansion, pipe strain, or foundation movement does not load bearings and seals. This directly extends bearing and seal life, reducing the frequency of failures that pull down the Availability component of OEE.
- Vibration reduction up to 80%. Lower vibration levels mean less fatigue on connected components, fewer inspections triggered by abnormal readings, and a longer PF curve that gives maintenance teams more time to plan interventions rather than react to them.
- Energy savings up to 50%. The A-TORQ drive eliminates overcapacity losses in pumps and fans through intelligent speed control, which also reduces thermal and mechanical stress on equipment and contributes to both Performance and Quality stability.
- Faster, simpler installation and retrofit. No laser alignment is required during installation, reducing the time and skill demands of each maintenance event and lowering the risk of human error during reassembly.
If rotating equipment reliability is a significant driver of your OEE losses, explore Zytec's non-contact drive solutions to understand how magnetic drive technology can reduce your maintenance burden and build a more reliable foundation for world-class OEE performance.
Frequently Asked Questions
How do I get started measuring OEE if my plant doesn't currently track it?
Start by defining your planned production time clearly — this is the foundation everything else is calculated against. Then collect data on the three components manually if needed: log downtime events and durations for Availability, compare actual output counts to theoretical maximum output for Performance, and track first-pass yield versus total output for Quality. Even a few weeks of manual data collection will reveal your largest losses and give you a baseline to improve from. Once you understand where the losses are concentrated, you can prioritize where to invest in automated data collection tools.
What is the difference between OEE and TEEP, and when should I use each?
OEE measures efficiency against planned production time only, while Total Effective Equipment Performance (TEEP) measures efficiency against all available calendar time, including scheduled downtime, weekends, and planned shutdowns. OEE is the right metric for evaluating how well your equipment performs when it is supposed to be running, and it is the basis for the 85% best-in-class benchmark. TEEP is more useful for capacity planning decisions — if TEEP is very low, it may indicate an opportunity to add production shifts or reduce scheduled downtime rather than focusing solely on equipment efficiency.
Can OEE be too high — are there risks to pushing it above 85%?
Yes, OEE can be misleading if pushed too aggressively without context. A plant that defers necessary preventive maintenance to maximize uptime in the short term may report a high OEE score today while accumulating reliability risk that leads to a catastrophic failure later. Similarly, running equipment at maximum speed to boost the Performance component can accelerate wear and increase defect rates. The goal should always be sustainable OEE improvement, not short-term score optimization at the expense of asset health or product quality.
How do I prioritize which OEE losses to tackle first when there are problems across all three components?
Use a Pareto analysis of your downtime and loss data to identify which specific machines, failure modes, or process steps are responsible for the largest share of lost OEE points. In most plants, 20% of the equipment accounts for 80% of the losses — finding and fixing those high-impact assets delivers the fastest return. As a general starting point, unplanned downtime (Availability losses) typically offers the largest single improvement opportunity because it affects all three components simultaneously: when a machine goes down unexpectedly, you lose availability time, disrupt throughput speed, and generate startup quality rejects all at once.
What common mistakes do plants make when implementing an OEE improvement program?
The most common mistake is measuring OEE at the plant or line level rather than at the individual machine level, which makes it impossible to pinpoint where losses are actually occurring. A second frequent error is inconsistent data collection — if operators categorize downtime differently across shifts or round off cycle times, the resulting OEE numbers are not comparable over time and cannot guide decisions. Finally, many improvement programs stall because OEE visibility is limited to management dashboards rather than being shared with the operators and technicians who can actually act on the information in real time.
How does predictive maintenance differ from planned maintenance in the context of improving OEE?
Planned (preventive) maintenance reduces unplanned failures by replacing or servicing components on a fixed time or usage schedule, regardless of their actual condition. Predictive maintenance goes further by using condition monitoring data — vibration analysis, thermal imaging, oil analysis, or motor current signatures — to intervene only when a component shows signs of actual degradation. For OEE purposes, predictive maintenance is superior because it minimizes unnecessary planned downtime while still preventing unplanned failures, effectively protecting the Availability component from both directions. The trade-off is that predictive programs require upfront investment in sensors and data analysis capability.
How long does it realistically take to move from a 60% OEE to 85% OEE?
Moving from 60% to 85% OEE is a multi-year journey for most plants — realistically 2 to 4 years of sustained, structured effort across maintenance, operations, and quality functions. Early wins from eliminating obvious downtime sources and standardizing changeover procedures can deliver 5 to 10 percentage point gains within the first 6 to 12 months, but the final stretch toward 85% requires deeper systemic changes such as shifting to predictive maintenance, improving equipment reliability at the component level, and embedding a continuous improvement culture. Plants that try to shortcut the process by focusing on the OEE number itself rather than systematically eliminating the underlying losses rarely sustain the gains they achieve.
